All About HID

Published: January 4, 2026

Warning: This is a security research article. Always obtain proper authorization before testing any access control systems. Unauthorized testing of physical security systems is illegal and unethical.

HID Global is one of the most prominent manufacturers of access control credentials and readers. Their technologies span both low frequency (125 kHz) and high frequency (13.56 MHz) systems, with varying levels of security. Here in the UK, HID alongside EM410X and MIFARE are among the most common PAC vendors used.

Introduction

HID Global (originally Hughes Identification Devices) produces a wide range of RFID and NFC credentials used in access control systems worldwide. HID offers both low-frequency and high-frequency solutions, each with distinct characteristics and security properties.

Types of HID Technologies

HID technologies can be broadly categorized by frequency and security level:

Low Frequency (125 kHz) Technologies

HID Prox

ProxCard / ProxCard II — Original HID low-frequency technology operating at 125 kHz. Uses proprietary encoding schemes (H10301, H10302, etc.) with facility codes and card numbers. No cryptography - data is stored in plaintext, and readers generally only utilise card UIDs for authentication. Easily cloned and emulated.
Indala — Originally developed by Indala Corporation (acquired by HID). Also operates at 125 kHz with proprietary formats. Similar security profile to Prox - no encryption, easily clonable.
AWID — Another 125 kHz format sometimes used in HID-compatible systems. Again uses plaintext storage, and UID dependent authentication. Easily clonable.

High Frequency (13.56 MHz) Technologies

HID iCLASS

iCLASS — High-frequency technology using 13.56 MHz. Uses DES encryption for authentication (though often with weak key management). Supports multiple application areas on a single card. Security depends heavily on implementation - can be vulnerable if default keys are used.
iCLASS SE (Secure Element) — Enhanced version with improved key management and secure element technology. More secure than standard iCLASS, but still potentially exploitable depending on configuration - for example legacy backwards compatibility with weaker protocols.
iCLASS Elite — Advanced iCLASS variant with stronger cryptographic features. Designed for higher security applications.

HID Seos

Seos — Modern high-frequency credential technology using AES-128 encryption. Supports secure messaging and key diversification. Designed to be highly secure and resistant to cloning attacks. Can be used in cards, fobs, and mobile devices.

Identification Through the Reader

HID seems to love the look of their own logo, so it's often very easy to identify a reader as HID due to stickers or branding. Specific readers either have markings or telltale unit design.

Note: You can identify a reader, but this is not to say that a given reader does not also support other card technologies. Investigative practice should draw information from all observable avenues, not solely readers.

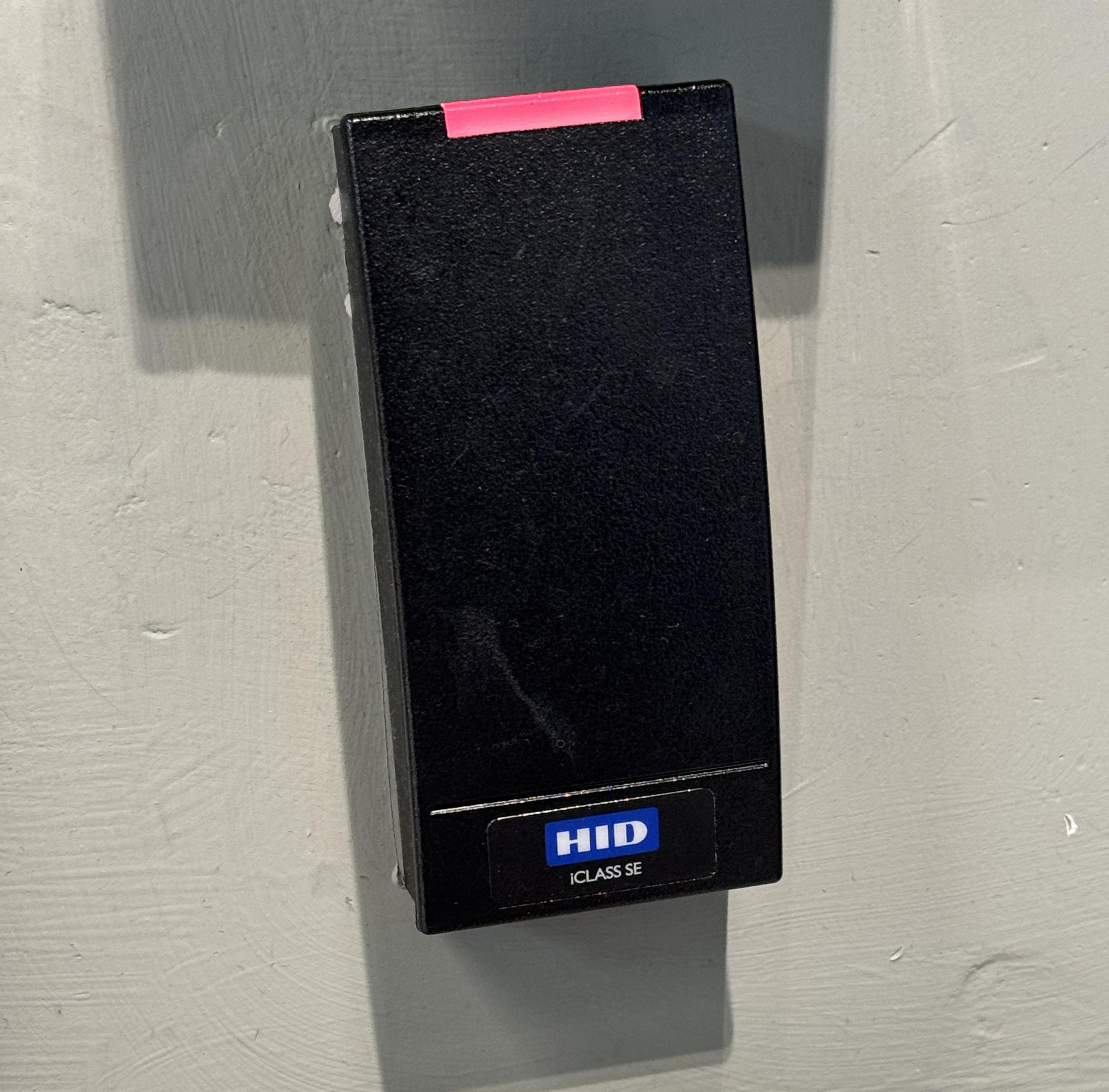

iCLASS SE

In this particular case the sticker gives it away, but SE readers tend to have a distinct LED strip on the top.

Seos

Similar to the iCLASS SE, but with a different profile and dual tone design. Still features the LED strip on the top.

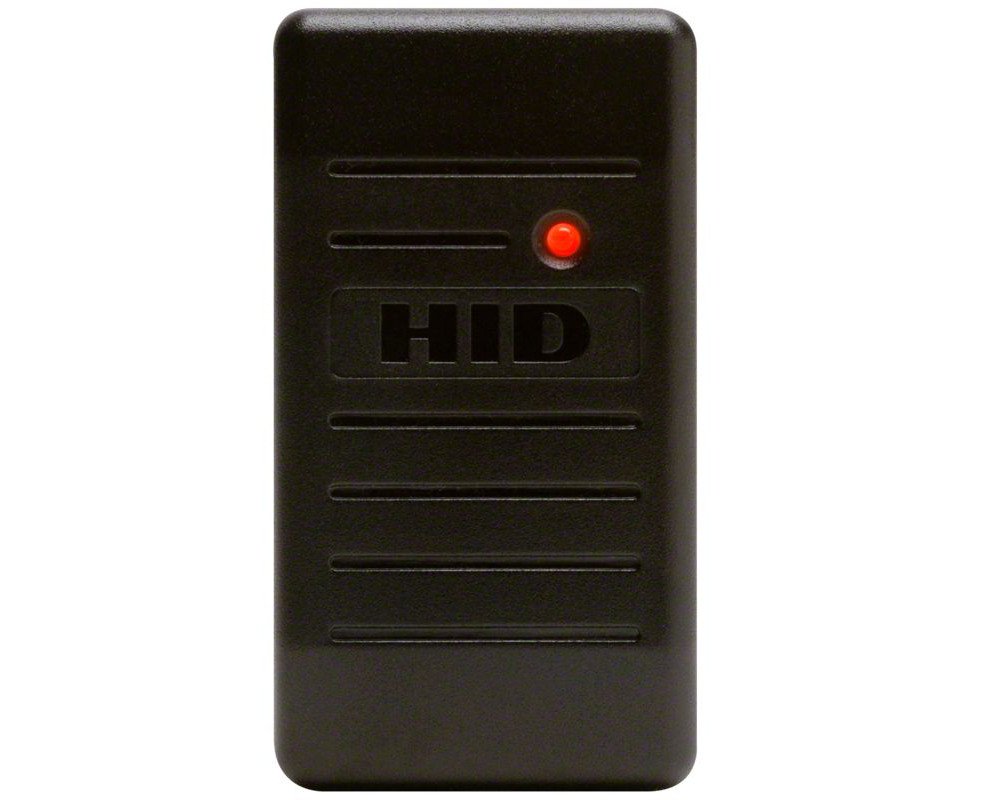

ProxCard

Usually have those aesthetic ridges in the reader face, with the HID branding engraved.

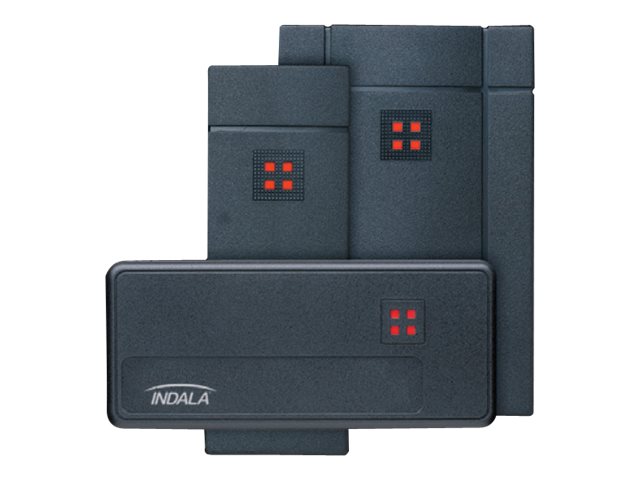

Indala

Very distinctive rdiged design with the Indala logo and four red dot array as an LED indicator.

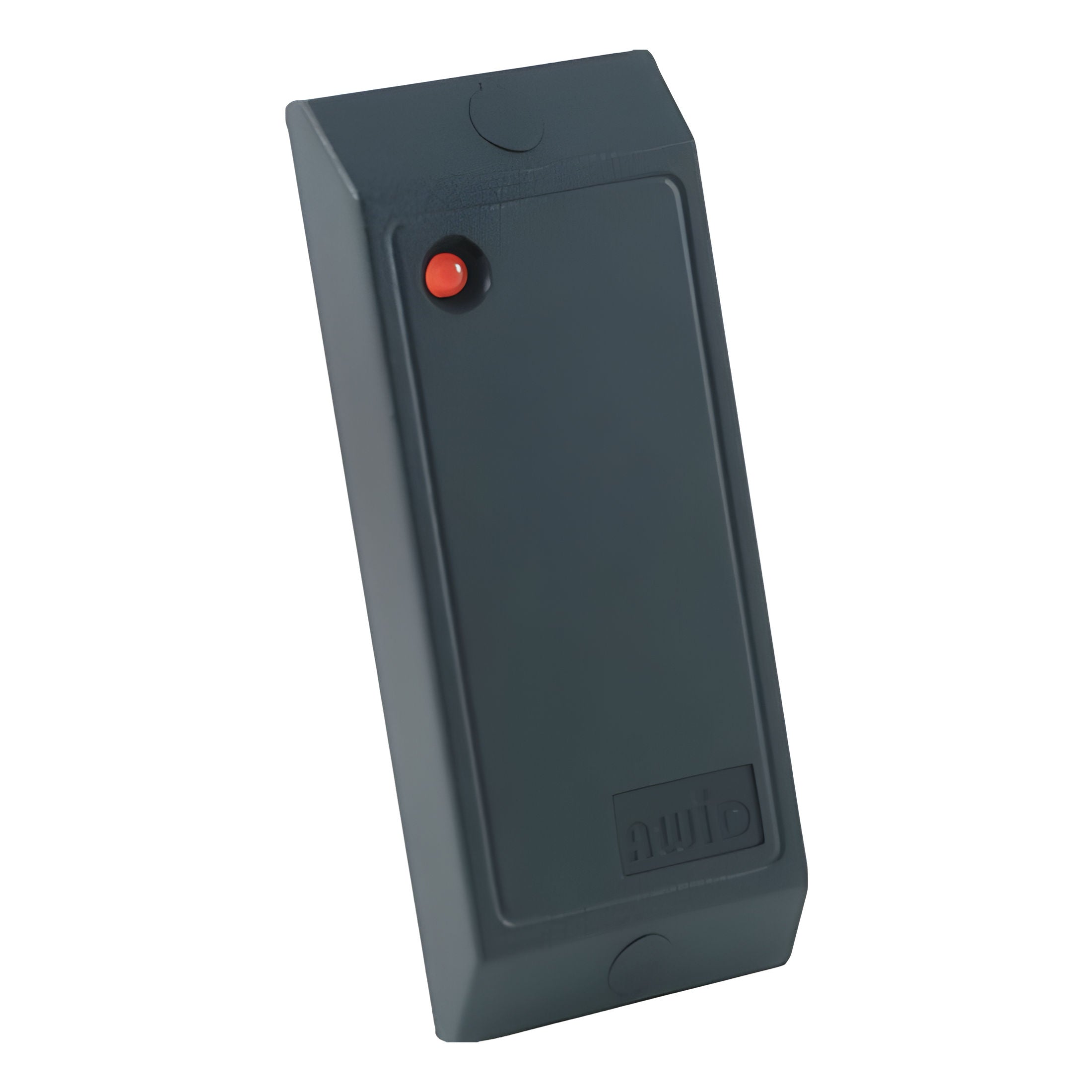

AWID

A minimalist design with a single LED indicator on the top left, with the AWID logo engraved.

A Word on Frequency Detection

As previously mentioned in other articles, a really useful tool for your arsenal is an RFID field detector. They have an LF and RF coil hooked up to separate LED indicators, which shows you what frequency the reader you present it to operates on.

125 kHz (Low Frequency): Indicates Prox, Indala, or other LF technologies.
13.56 MHz (High Frequency): Indicates iCLASS, Seos, or other HF technologies.

HID Technology Comparison

Technology	Frequency	Clonable?	Emulatable?	Notes
ProxCard / ProxCard II	125 kHz (LF)	Clonable	Emulatable	No encryption, easily cloned.
Indala	125 kHz (LF)	Clonable	Emulatable	Similar to Prox, no encryption.
AWID	125 kHz (LF)	Clonable	Emulatable	Plaintext format, clonable.
iCLASS	13.56 MHz (HF)	Deployment-dependent	Partially Emulatable	Vulnerable if default keys used; secure if properly configured. Uses DES encryption.
iCLASS SE	13.56 MHz (HF)	Deployment-dependent	Partially Emulatable	Improved key management, but still potentially exploitable. Uses enhanced DES encryption.
iCLASS Elite	13.56 MHz (HF)	Not clonable	Partially Emulatable	Stronger cryptographic features, more secure. Uses DES or AES encryption.
Seos	13.56 MHz (HF)	Not clonable	Not emulatable	Modern, secure credential with key diversification. Uses AES-128 encryption.

Cloning HID Technologies

Low Frequency (Prox, Indala)

Low-frequency HID technologies are the easiest to clone due to their lack of encryption and full reliance on UID authentication. For this reason, it is no more complicated than cloning any other low frequency RFID tag. You can use a T5577 to emulate pretty much any low frequency RFID credential.

[usb] pm3 --> lf hid read
[+] Reading HID Prox tag...
[+] Tag ID: 2006fc0d (26 bits)
[+] Format: H10301
[+] Facility Code: 200
[+] Card Number: 1797

[usb] pm3 --> lf hid clone 2006fc0d
[+] Cloning HID tag with ID: 2006fc0d
[+] Writing to T55x7 tag...
[+] Done!

High Frequency (iCLASS)

iCLASS credentials are more challenging due to DES encryption. Cloning success depends on the specific implementation of the credential and reader, alongside whether default keys are in use.

Note: iCLASS cloning typically requires either default keys, a compromised key database, or sophisticated cryptanalysis. Many iCLASS implementations use default keys, making them vulnerable. Tools such as the iCopy-X ICS Decoder claim to be able to decode and clone legacy portions of iClass cards if they are configured as such.

[usb] pm3 --> hf iclass read
[+] Reading iCLASS tag...
[+] UID: 04 12 34 56 78 90 12
[+] Attempting authentication with default keys...
[+] Authentication successful with default key!

Conclusion

HID technologies span a wide range of security levels, from easily clonable low-frequency Prox cards to highly secure Seos credentials. Low-frequency technologies (125 kHz) are generally insecure and easily cloned, while high-frequency technologies (13.56 MHz) vary significantly in security depending on the specific implementation and encryption used. When encountering HID credentials, identifying the frequency and specific technology is the first step in assessing exploitability. Always remember that proper authorization is required before testing any access control system.
